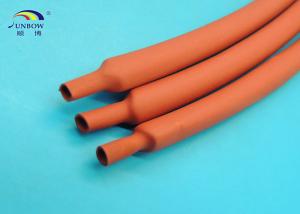

Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED

Brand Name : Sunbow

Model Number : SB-RSFR-125H

Certification : UL(UL No.: E360625), RoHS, Reach, ISO9001, TS16949

Place of Origin : Shenzhen, Guangdong, China

MOQ : 2000M

Price : USD0.03 ~ 16.67 per meter

Payment Terms : T/T, PayPal.

Supply Ability : 9000000 meter per year.

Delivery Time : 5 ~ 8 working days.

Packaging Details : 0.5mm ~ 4.0mm, 400 meter/spool; 4.5mm ~ 6.0mm, 200 meter/spool; 7.0mm ~ 22.0mm, 100 meter/spool; 25.0mm ~ 40.0mm, 50 meter/spool; 45.0mm ~ 300.0mm, 25 meter/spool.

Product name : Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED

Diameter range : 0.5mm ~ 300.0mm

Color : Black, red, yellow, blue, green, white.

Property : Insulation, flame retardant, eco-friendly, soft, low-smoke

Working temperature : -45ºC ~ 125ºC

Shrink temperature : 84ºC ~ 120ºC

Shrink ratio : 2:1

Tensile strength : 10.4Mpa

Contact Now

Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED

Product description: Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 red

Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED is made of eco-friendly cross-linking polyolefin material under irradiation. Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.

Property: Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED

  • thin walled flexible polyolefin tubing
  • fast shrinking and low shrinking temperature
  • meets and exceeds a lot of industrial standards
  • big variety of different colors and sizes
  • printable
  • flame retardant and UL224 VW-1 listed
  • flexible
  • zero halogen
  • low smoke generation if burning
  • continuous operating temperature: -45ºC ~ 125ºC
  • shrink temperature: 84ºC ~ 120ºC
  • RoHS compliant

Specification: Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED

Property Unit Test Method Standard
Tensile Strength MPA ≥10.4(Before Aging) GB/T 1040
≥7.3(After Aging) 158ºC*168hrs
Breakage Elongation (%) % ≥200(Before Aging) GB/T 1040
≥100(After Aging) 158ºC*168hrs
Heat Shock - No Sticking & No Cracking 250ºC*4hrs
Cold Blend - No Cracking -30ºC*4hrs
Breakdown Strength KV/mm ≥15 GB/T 1408
Dielectric Withstand 600V - Pass No Breakdown for 2500V, 60s
300V - Pass No Breakdown for 1500V,60s
Volume Resistivity Ω. cm ≥1×1014 GB/T 1410
Corrosion Performance - pass 158ºC*168hrs
Copper Stability - pass 158ºC*168hrs
Flammability - pass

VW-1

Dimension: Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED

1). Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED

Inner

Diameter

 As Supplied(mm) After Recovery(mm) Standard Package Application Range(mm)
Inner Diameter Wall Thickness Inner Diameter Wall Thickness (m/spool)
Φ0.6 0.9±0.2 0.20±0.05 ≤0.40 0.33±0.10 400 0.4~0.7
Φ0.8 1.1±0.2 0.20±0.05 ≤0.50 0.33±0.10 400 0.6~0.8
Φ1.0 1.5±0.2 0.20±0.05 ≤0.65 0.36±0.10 400 0.75~0.9
Φ1.5 2.0±0.2 0.20±0.05 ≤0.85 0.36±0.10 400 0.95~1.4
Φ2.0 2.5±0.2 0.23±0.05 ≤1.00 0.45±0.10 400 1.1~1.8
Φ2.5 3.0±0.2 0.23±0.05 ≤1.30 0.45±0.10 400 1.35~2.3
Φ3.0 3.5±0.2 0.23±0.05 ≤1.50 0.45±0.10 400 1.6~2.7
Φ3.5 4.0±0.2 0.23±0.05 ≤1.80 0.45±0.10 400 1.85~3.2
Φ4.0 4.5±0.2 0.25±0.05 ≤2.00 0.45±0.10 400 2.1~3.6
Φ4.5 5.0±0.2 0.28±0.05 ≤2.30 0.56±0.10 200 2.35~4.0
Φ5.0 5.5±0.2 0.28±0.05 ≤2.50 0.56±0.10 200 2.6~4.5
Φ6.0 6.5±0.2 0.28±0.05 ≤3.00 0.56±0.10 200 3.1~5.4
Φ7.0 7.5±0.3 0.28±0.05 ≤3.50 0.56±0.10 100 3.7~6.3
Φ8.0 8.5±0.3 0.30±0.08 ≤4.00 0.56±0.10 100 4.2~7.2
Φ9.0 9.5±0.3 0.30±0.08 ≤4.50 0.56±0.10 100 4.7~8.0
Φ10 10.5±0.3 0.30±0.08 ≤5.00 0.56±0.10 100 5.2~9.0
Φ11 11.5±0.3 0.30±0.08 ≤5.50 0.56±0.10 100 5.7~10
Φ12 12.5±0.3 0.30±0.08 ≤6.00 0.56±0.10 100 6.2~11
Φ13 13.5±0.3 0.30±0.08 ≤6.50 0.56±0.10 100 6.7~12
Φ14 14.5±0.3 0.35±0.10 ≤7.00 0.70±0.10 100 7.3~13
Φ15 15.5±0.4 0.35±0.10 ≤7.50 0.70±0.10 100 7.8~14
Φ16 16.5±0.4 0.35±0.10 ≤8.00 0.70±0.10 100 8.3~15
Φ17 17.5±0.4 0.35±0.10 ≤8.50 0.70±0.10 100 8.8~16
Φ18 19.0±0.5 0.35±0.10 ≤9.00 0.70±0.10 100 9.3~17
Φ20 22.0±0.5 0.35±0.10 ≤10.00 0.83±0.15 100 10.4~19
Φ22 24.0±0.5 0.40±0.12 ≤11.00 0.83±0.15 100 11.4~21
Φ25 26.0±0.5 0.40±0.12 ≤12.50 0.90±0.15 50 12.8~24
Φ28 29.0±0.5 0.45±0.12 ≤14.00 0.90±0.15 50 14.4~29
Φ30 31.5±1.0 0.45±0.12 ≤15.00 1.00±0.15 50 16~29
Φ35 36.5±1.0 0.45±0.12 ≤17.50 1.00±0.15 50 18~34
Φ40 41.5±1.0 0.45±0.12 ≤20.00 1.00±0.15 50 21~39
Φ45 46.5±1.0 0.50±0.15 ≤22.5 1.00±0.15 25 23.5~44
Φ50 ≥50 0.50±0.15 ≤25.0 1.10±0.15 25 26~49
Φ60 ≥60 0.60±0.15 ≤30.0 1.20±0.15 25 35~55
Φ70 ≥70 0.65±0.15 ≤35.0 1.30±0.20 25 40~65
Φ80 ≥80 0.65±0.15 ≤40.0 1.30±0.20 25 45~75
Φ90 ≥90 0.65±0.15 ≤45.0 1.30±0.20 25 50~85
Φ100 ≥100 0.65±0.20 ≤50.0 1.30±0.20 25 55~95
Φ120 ≥120 0.65±0.20 ≤60.0 1.30±0.20 25 65~115
Φ150 ≥150 0.65±0.20 ≤70.0 1.30±0.20 25 80~145
Φ180 ≥180 0.65±0.30 ≤90.0 1.30±0.30 25 95~175
Φ210 ≥210 0.65±0.30 ≤105.0 1.30±0.30 25 110~205
Φ230 ≥230 0.65±0.30 ≤115.0 1.30±0.30 25 120~225
Φ250 ≥250 0.65±0.30 ≤125.0 1.30±0.30 25 130~240

2) halogen free flame-retardant ultra thin heat shrinkable tube

Inner

Diameter

 As Supplied(mm) After Recovery(mm) Package Application Range (mm)
Inner Diameter Wall Thickness Inner Diameter Wall Thickness (m/spool)
Φ0.6CB 0.9±0.2 0.13±0.05 ≤0.40 0.20±0.10 200 0.4~0.7
Φ0.8CB 1.0±0.2 0.13±0.05 ≤0.50 0.20±0.10 200 0.6~0.8
Φ1.0CB 1.40±0.20 0.13±0.05 ≤0.65 0.20±0.10 200 0.7~1.0
Φ1.5CB 1.90±0.20 0.13±0.05 ≤0.85 0.20±0.10 200 0.9~1.4
Φ2.0CB 2.40±0.20 0.13±0.05 ≤1.00 0.22±0.10 200 1.1~1.8
Φ2.5CB 2.90±0.20 0.13±0.05 ≤1.30 0.25±0.10 200 1.4~2.3
Φ3.0CB 3.40±0.20 0.13±0.05 ≤1.50 0.28±0.10 200 1.6~2.7
Φ3.5CB 3.90±0.20 0.13±0.05 ≤1.80 0.28±0.10 200 1.9~2.3
Φ4.0CB 4.40±0.20 0.15±0.05 ≤2.00 0.30±0.10 200 2.1~3.6
Φ4.5CB 4.90±0.20 0.15±0.05 ≤2.30 0.30±0.10 100 2.4~4.0
Φ5.0CB 5.50±0.20 0.15±0.05 ≤2.50 0.32±0.10 100 2.6~4.5
Φ6.0CB 6.50±0.20 0.15±0.05 ≤3.00 0.32±0.10 100 3.1~5.4
Φ7.0CB 7.50±0.30 0.15±0.05 ≤3.50 0.32±0.10 100 3.7~6.3
Φ8.0CB 8.50±0.30 0.15±0.05 ≤4.00 0.32±0.10 100 4.2~7.2
Φ9.0CB 9.50±0.30 0.15±0.05 ≤4.50 0.35±0.10 100 4.7~8.0
Φ10CB 10.50±0.30 0.15±0.05 ≤5.00 0.35±0.10 100 5.2~9.0
Φ11CB 11.50±0.30 0.18±0.05 ≤5.50 0.40±0.10 100 5.7~10.0
Φ12CB 12.50±0.30 0.20±0.05 ≤6.00 0.40±0.10 100 6.2~11.0
Φ13CB 13.50±0.30 0.20±0.05 ≤6.50 0.40±0.10 100 6.7~12.0
Φ14CB 14.50±0.30 0.20±0.05 ≤7.00 0.40±0.10 100 7.3~13.0
Φ15CB 15.50±0.40 0.20±0.05 ≤7.50 0.40±0.10 100 7.8~14.0
Φ16CB 16.50±0.40 0.22±0.05 ≤8.00 0.40±0.10 100 8.3~15.0
Φ17CB 17.50±0.40 0.22±0.05 ≤8.50 0.40±0.10 100 8.8~16.0
Φ18CB 18.50±0.40 0.22±0.05 ≤9.00 0.42±0.10 100 9.3~17.0
Φ20CB 20.50±0.50 0.25±0.05 ≤10.0 0.45±0.10 100 10.5~19.0
Φ22CB 22.50±0.50 0.25±0.05 ≤11.0 0.45±0.10 100 11.5~20.5

Color: Black, white, red, yellow, green, blue.

Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED

Fast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 REDFast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 REDFast Shrinking and Low Shrink Temperature Heat Shrinkable Tubing 2:1 Flexible 4.8/2.4 RED
